TECHNICAL GUIDE

Configuring Dropbox Teams for Slingshot Replication

Sage Syracuse
  • Updated

As of EVO OS v.7.1.0.161, Dropbox Teams accounts are now officially supported. Configuring Dropbox Teams for use on EVO will require setting up API integration for Dropbox Teams from an admin user of the Dropbox Teams account. This guide will go over the steps for creating an API application key using Dropbox's developer tools, setting permissions for the key, and configuring Slingshot for use with Dropbox Teams using the generated API key.


Generating an API Application Key on Dropbox

On Your Dropbox Teams Account, perform the following steps to generate an API Application Key:

  1. Log in to your Dropbox account as a Teams Admin.
  2. Visit the Dropbox Developers Page.

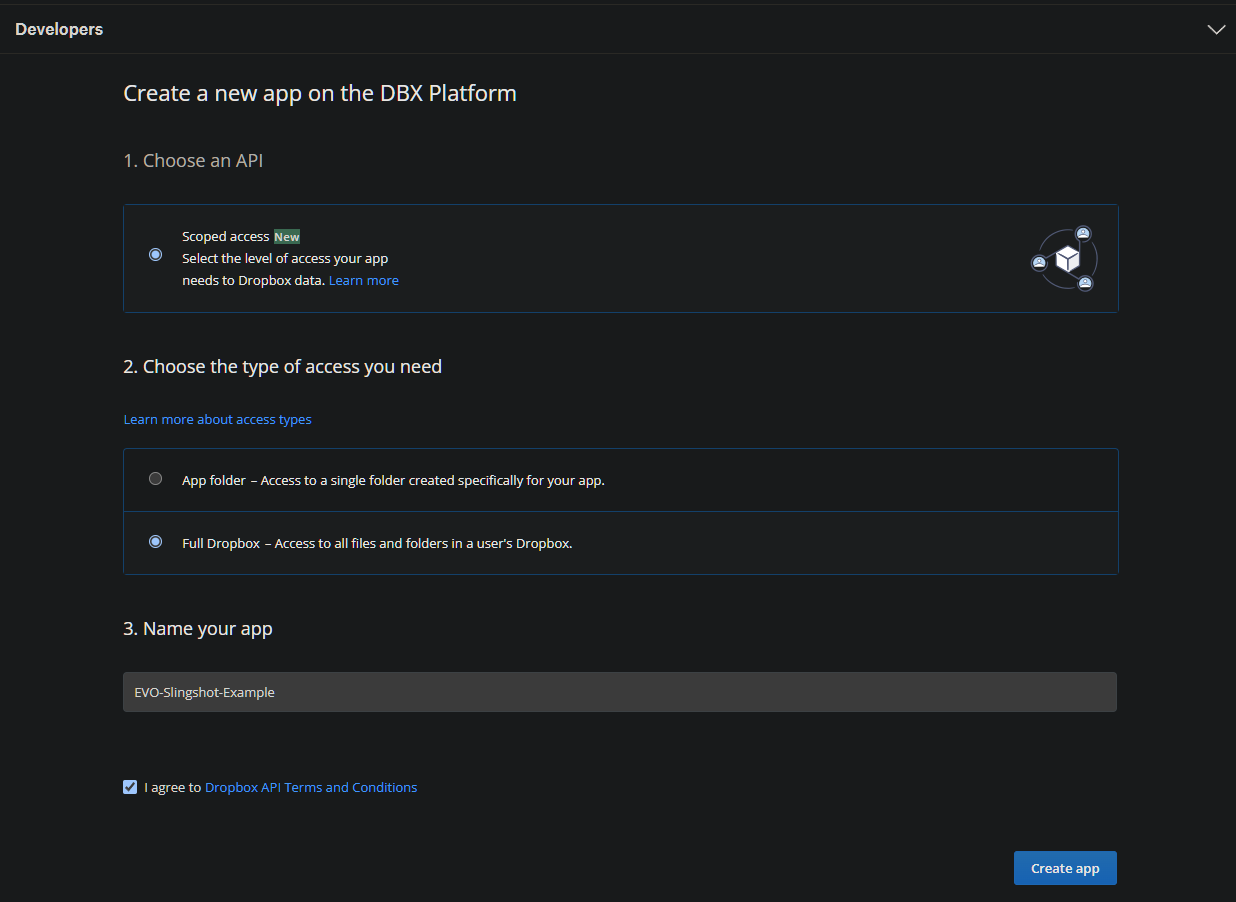

  3. Click the "Create apps" button.
  4. Select "Scoped access" (only option) from the "Choose an API" section.
  5. Select "Full Dropbox" from the "Choose the type of access you need" section.
  6. Enter a name of your choice for your app in the "Name your app" section.
  7. Click "Create app".
    Step 4-7.PNG

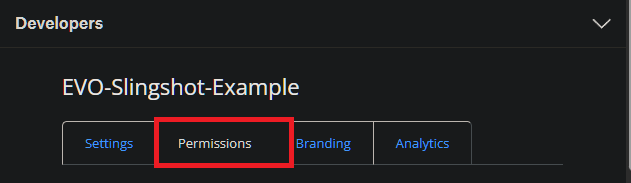

  8. On the following page, click the "Permissions" tab in the Navigation Bar at the top of the page.
    Step 8.PNG

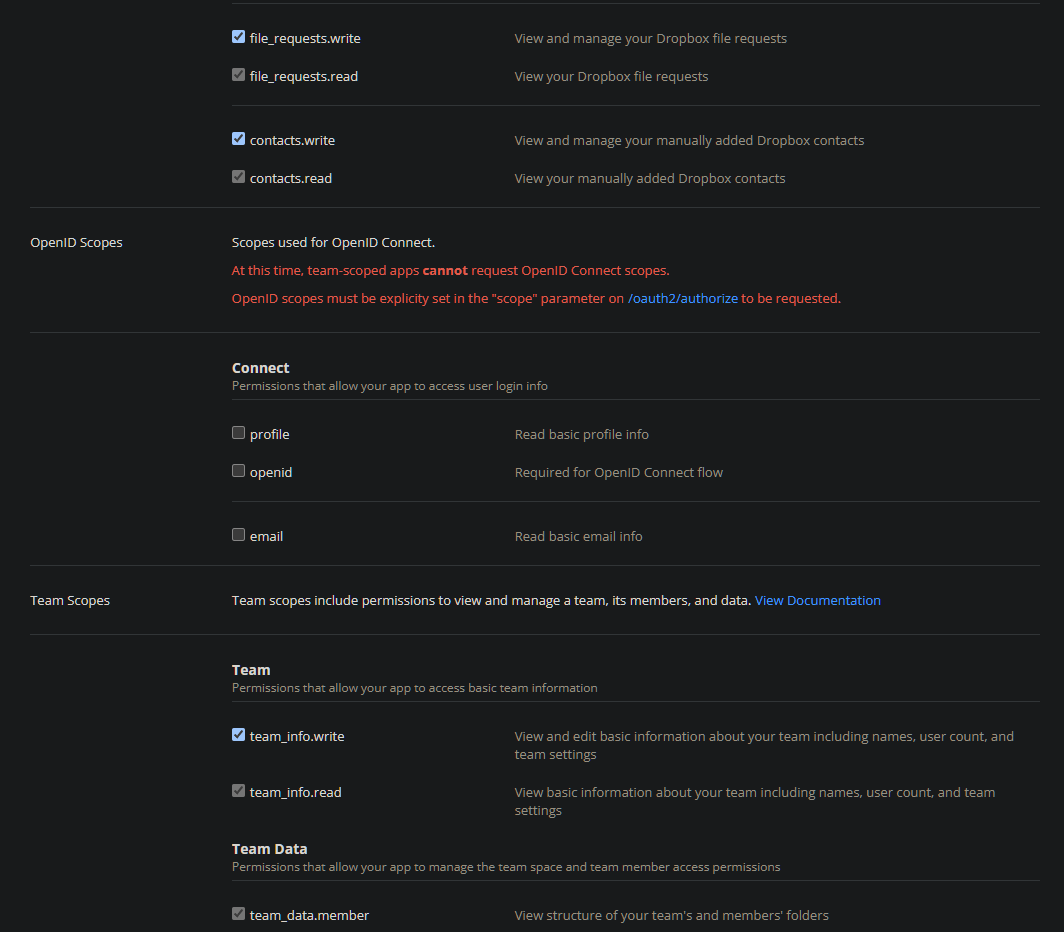

  9. Check all boxes under all sections on the following page, except for the boxes under the "OpenID Scopes" section.
  10. Click "Submit" on the hovering bar at the bottom of the screen.Step 10.PNG

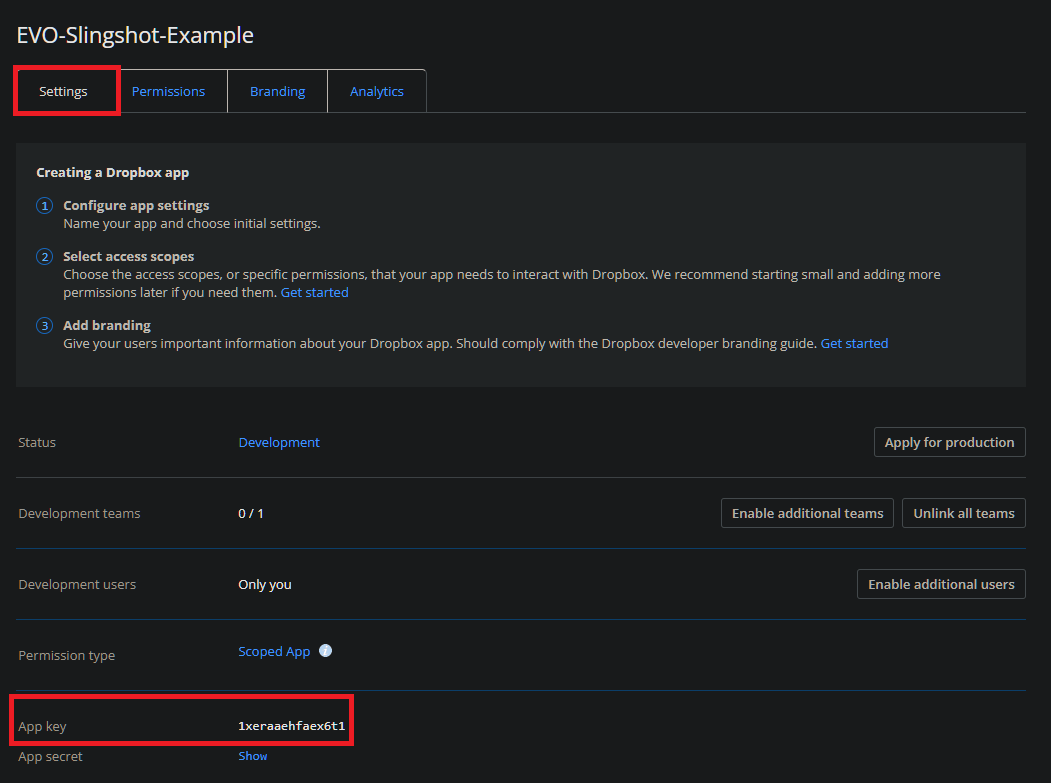

  11. Click the "Settings" tab in the Navigation Bar at the top of the page.
  12. Copy the "App key" from the page that appears and save it for use with EVO.

Configuring Dropbox Teams Slingshot Integration on EVO

Once you have a Dropbox API application key, perform the following steps on your EVO's Administration Interface:

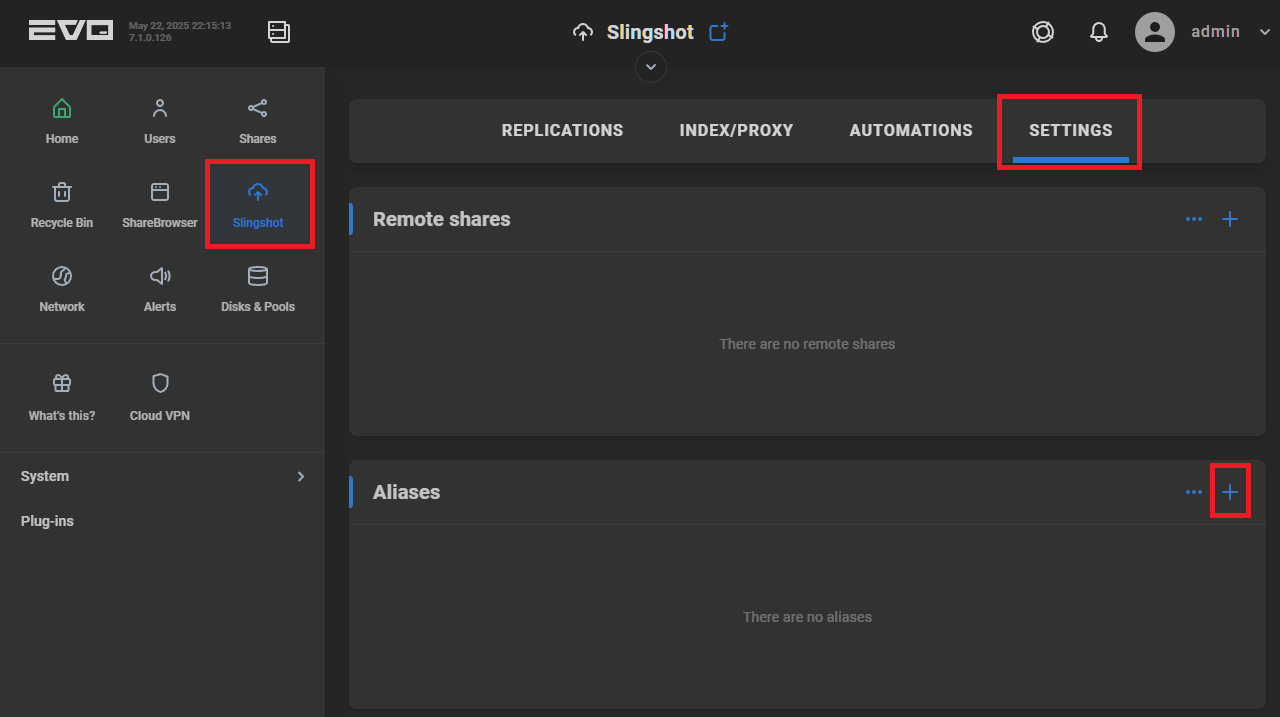

  1. Select "Slingshot" from the left-hand navigation panel.
  2. Click the "Settings" tab in the Navigation Bar at the top of the page.
  3. Click the + icon in the "Aliases" card.EVO1-3.PNG

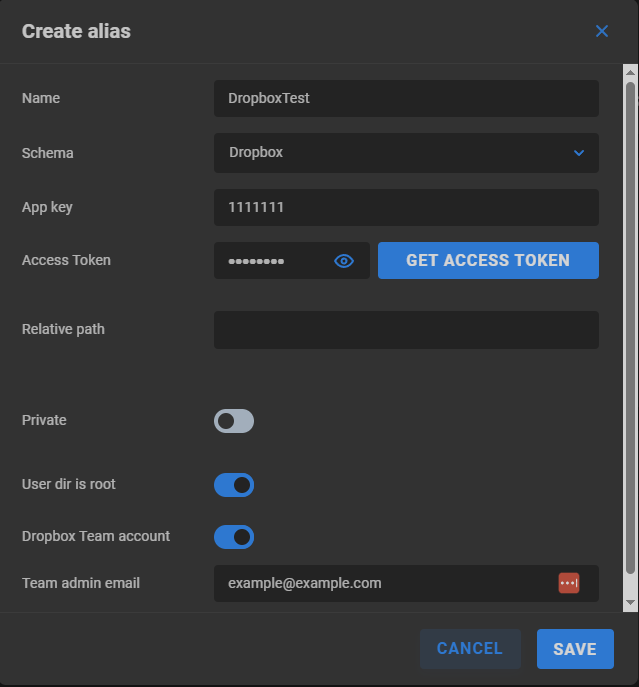

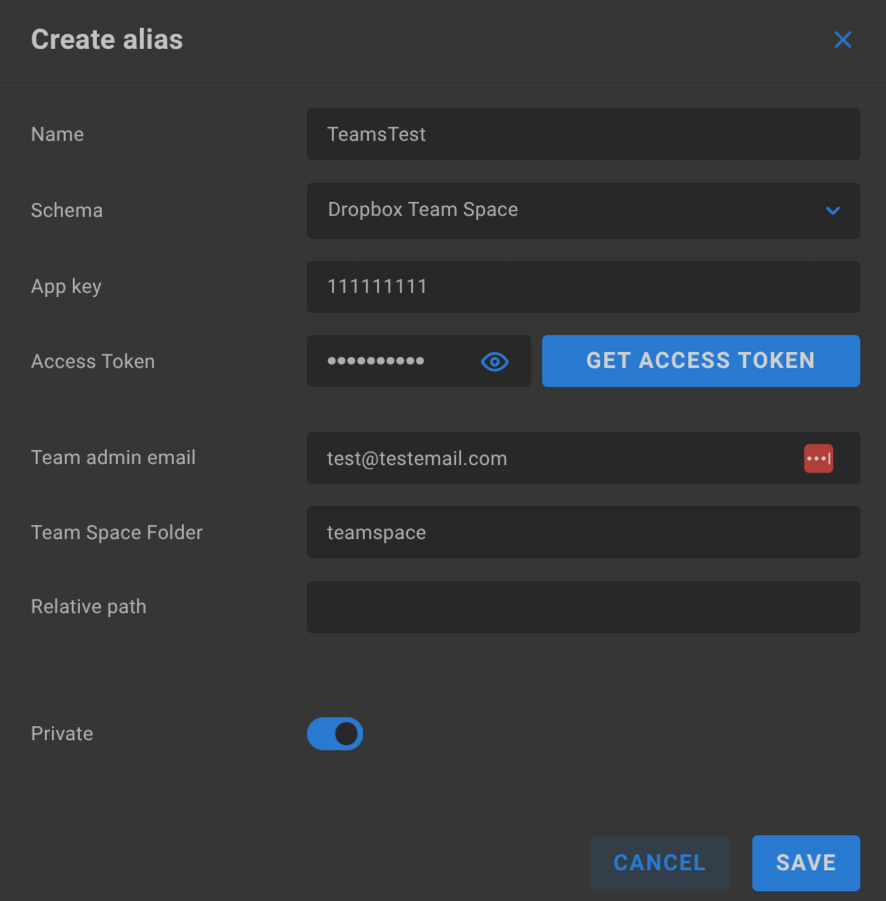

  4. Enter a name of your choice for the new alias.
  5. Under "Schema", choose "Dropbox Teams" from the drop-down menu.
  6. Paste the "App key" into the "App key field".
  7. To get the "Access Token", click "GET ACCESS TOKEN".

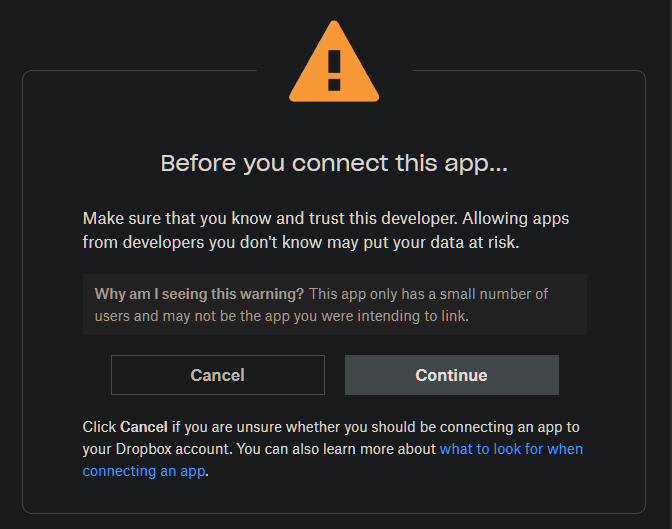

  8. Click "Continue" in the pop-up window that appears. Provided the Application Key is correct, this is just confirming that you trust yourself as the owner of the API key and SNS in its use.

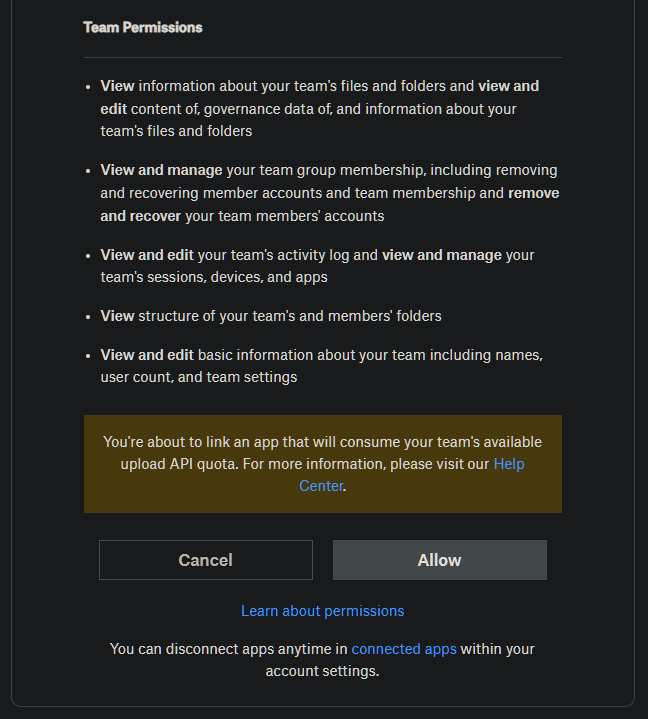

  9. The following page in the pop-up window will outline the permissions the Application key is requesting. Click "Allow" to agree to the outlined permissions.EVO9.PNG
  10. Copy the access token that appears in the popup window and then close it.
  11. Back on the Create Alias page of the EVO administrative interface, paste the copied access token into the Access Token field.
  12. In the "Team admin email" field, enter the email address of the Admin user. This will be the same e-mail address affiliated with the account used to generate the API Application Key.
  13. In the "Team Space Folder" field, enter the name of a Team Space Folder you'd like the alias to be registered to.
  14. If you would like to have Slingshot write in a subfolder relative to the designated Teams Space folder, enter the subfolder path in the Relative Path field.
  15. Press "SAVE".

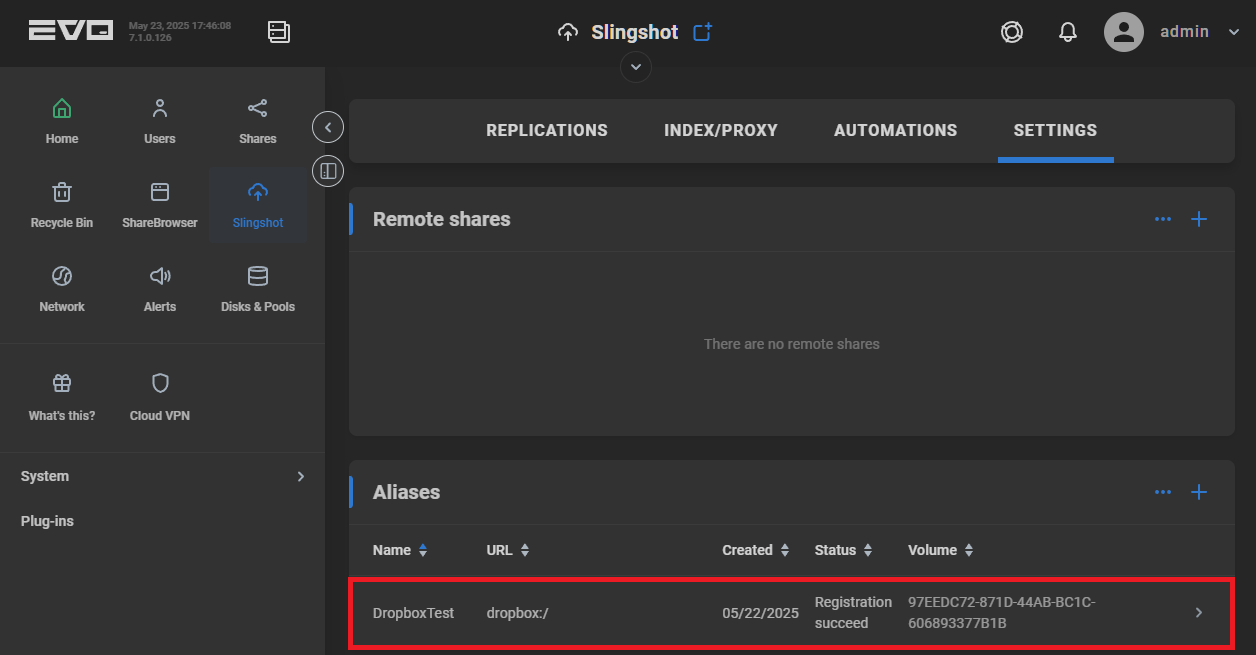

15. Allow a few moments for registration, and a Volume ID will appear once successfully connected.
